Coverage Rate per Gallon:
450 S.F. @ 1 coat (4 mils/100 microns wet film thickness)
Standard application is typically between 6-10 coats (depending upon needs)
Actual coverage rate may vary depending on surface texture. All products are sold by weight, not volume.
ASK US ABOUT CONTRACTOR AND VOLUME DISCOUNTS, CALL 800-858-3176.
Patented Technology
A nanotechnology-based insulation and corrosion prevention coating that is designed for metal substrates up to 400F (204C). It bonds with the surface of the metal to prevent corrosion and CUI. It will provide you with long-term performance and durability resulting in lower maintenance costs, a longer asset life and reduced asset turnover.
This industrial insulation is used for steam pipe insulation, boiler insulation, heat exchanger insulation, high temperature insulation, and more. If you are tasked with saving energy, preventing corrosion and CUI, and reducing carbon emissions, this is your powerful sustainable solution. It’s simple, and can be applied while equipment is in service through a misting spray application.
Specifications: Indoor and outdoor use. Direct-to-Metal coating for surfaces up to 400F (204C).
Uses include: pipe insulation, tank insulation, steam pipe insulation, boiler insulation, and much more.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Gallon Size | 5 Gallon |
| Color/Look | Applied at 170F (77C) and below: Clear with smooth matte finish |
| Thermal: ISO 8990:1999 | 34.8% decrease in thermal conduction, 3-coat thickness |
| Thermal: BC/BP Standard | Passed – Over 100 day test, held internal temperature under salt spray conditions, no degrading |
| Corrosion: GM9540P | 24 cycles with no rust present (8 cycles is minimum passing) |
| CUI Resistance: BC/BP Standard | Passed – Over 100 day cyclical salt spray test, prevented corrosion with no degrading |
| Flame Spread: ASTM E84 | Class A |
| VOC Content | 180 g/L (low VOC) |
| Type | Water-based, environmentally friendly |
| Coverage Rate | 450 S.F. (42 m2) per gallon at 1-coat |
| Typical Application | 8 – 10 coats |
Only logged in customers who have purchased this product may leave a review.
Customer Review Highlights –

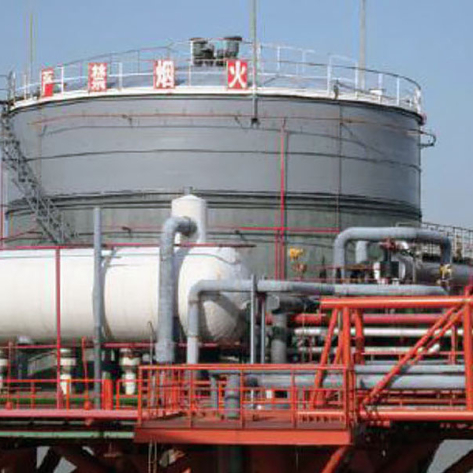

“Syneffex’s Heat Shield™ High Heat provided Sinopec with an effective solution in a clear thin film application that also prevented corrosion. A 12-coat application was used over the offshore fuel oil storage tank. The tank had to be kept between 68C and 72C. The final analysis showed that the High Heat coating was effective and within 3 degrees C of the 8cm rock wool insulation, plus it solved the corrosion issue and provided a cost effective solution that would stand up to the harsh ocean environment without degrading.”
-Sinopec (China Oil & Gas Company), East China Sea
Customer Review Highlights –
“Because of global warming, our duty is to make use of energy as efficiently as possible; wasted energy is wasted national wealth. This is why I highly recommend this technology to all of the textile industry and other heat using industries.”
-Henateks A.S., Turkey
Customer Review Highlights –
“Syneffex’s Heat Shield™ High Heat was applied to heat interchangers and other piping to insulate, protect against corrosion, and decrease the amount of energy used for equipment processes. Preliminary results showed a 20 degrees Centigrade (36 Fahrenheit) difference after a 3-coat coverage (approximate thickness of 7 mils dry film thickness).”
-Grupo Modelo (makers of Corona Beer), Mexico
